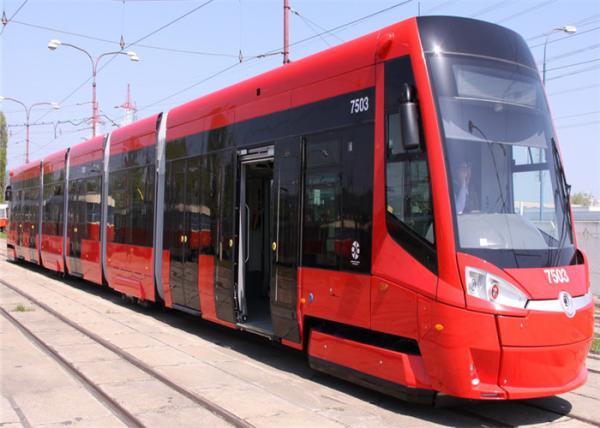

Product Name:24V or 12V LRV or metro electric out sliding plug door with emergency release function

1. The main features :

• Smooth motion. It combines the linear bearing’s sliding and roller bearing’s rolling mechanism to accomplish the sliding and swinging motion during the door open and close. It also utilizes rotating columns to balance the upper and lower part of door panel plugging motion;
• High safety. It utilizes the over-center auto locking to make sure that the door will not open accidentally. The door will be locked even tighter if pushed by passenger. It also utilizes the pressure wave sensitive edge combined with current measurement as secondary sensitive edge;
• High reliability. Power driven swinging motion for the smooth door movement;
• Energy Saving. Swinging and sliding driven by single motor for power efficiency;
• Superior sealing. It insulates noise from the outside and reduces the energy loss of the air conditioner;
• Sleek outlook. The outlook is very clean by using the curve-matched door panel and the inner sealing.

2. Mechanism :
The door system consists of mechanical system and electrical system.

• Driving mechanism includes DC motor and multi-head ball screw to achieve smooth motion and high reliability.
• Plugging mechanism includes fix plate, moving plate, rotating shaft, plug driving rod, plug following rod.
• Guiding mechanism consists of upper guide track and lower guide track. Upper guide track is installed on the fix plate. When the door panel moves, the roller installed on the hanger will rotate around the guide track.
• Locking and unlocking mechanism includes rotating shaft, plug driving rod, plug following rod, unlocking disc, and emergency handle.
• The electrical door control system (EDCU) is developed by Ivy itself. EDCU controls the door movement by getting orders from vehicle. T
• The sensitive edge system is part of electrical system. When the sensitive edge installed on the door panel hits the obstacle during the closing, the door panel will start to open to avoid pinching.

  The door system consists of mechanical system and electrical system. Mechanical system includes door operator, door shaft and door panels.

Our Service :

1. Sample order acceptable

2. Response in 8 hours.

3. Design free of Charge

4.Focus on aftersales service

• Main Parameters:

• Operation Temperature	-40°C - 60°C
  Operation Voltage	DC110V or DC24V
  Motor Power	100W or 150W
  Minimum Life Cycle	1,500,000
  Door Closing or Opening Time	1.5 – 3.5 Seconds
  Style	Single or Double

• ​Ivy Machinery Main Products:
•


  SG300 & ESG300 slide-glide door system for city bus,

  SG400 & ESG400 BRT slide-glide door system for city bus or low floor BRT Vehicles,

  BP300 electrical bridge-plate ramp for low floor bus,

  ER300 electrical rotary door system for mini-bus,

  NR300 pneumatic rotary door system for coach bus,

  ESW300 electrical swing door system for school bus,

  NOSP300 pneumatic outside sliding plug door system for high end bus,

  PF300 platform safety door for BRT bus stations.




  Ivy’s main rail products :

  EOSP300 electrical outside sliding plug door system for Metros or LRV,

  EOSP330 electrical plug door system for low floor trams,

  EIS300 electrical inside sliding door for Metros or LRV,

  EOS300 electrical outside sliding door for Metros or LRV,

  BP200 manual bridge-plate for low floor trams,

  PF400 platform door system for rail stations.

Ivy is a foreign investors-owned enterprise for the development and mass production of vehicle & platform automatic door systems. Located in Nanjing Software Zone Jiangpu Technology Park, It is built to supply world-class equipments to the fast growing public transportation industry. It owns the capacity to supply 20,000 sets of automatic door system annually.

Founded in 2004, it has become a main automatic door manufacturer in Asia. Its main customers include Qinghua Tongfang, CSR Puzheng Rail Rolling Stock Co., Volvo Bus, Yutong Bus Co., Ltd, BYD, Neoplan China, Changan Bus, FAI Bus and Coach Co., Ltd, Chengdu Bus Co. and so on. Since 2006, Ivy door systems and other auto and industrial components have been exported to the U.S., Canada, Australia, Germany, Indonesia, Thailand and other countries.

Its main products, win the Best Component Award in 2005, 2007, 2011, 2013,2018 National Bus Competition in China. Ivy gets the ISO 9001-2000 certified in 2006, gets ISO/TS 16949:2002 in 2009, and get ISO14000 and 18000 in 2011. Ivy gains competitive advantage by supplying innovative and reliable products. It owns more than forty patents in the automatic door industry. All Ivy new products have to pass function, durability, and environment tests.

After several years’ researches, Ivy has developed doors for railway platform and railway trains. With its patented key technologies such as two-directional driving mechanism, over-center locking and synchronous mechanism, Ivy has gain more and more recognitions in rail industry. Ivy will contribute itself to the public transportation industry by supplying safe, reliable , energy saving and cost effective products to our customers.
