Product Name: Spare parts avaiable pneumatic bus door mechanism for Mini bus and coach

1. Introduction:

Application: tour bus,intercity bus,coach.Van, Minibus

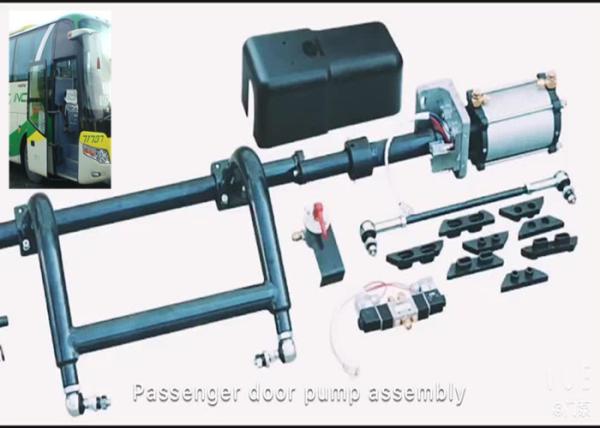

System Component: Rotary actuator, Shaft assembly and Door panel assembly.

Main Parameter:

Operating principle:

1) Auto operation :When “open” or “close” switch is pushed, the 5-way 2-position solenoid valve will be actuated, which drives linear pneumatic cylinder move up and down. Through splined shaft,the linear motion transfer to rotation, which cause the door open or close.

2) Emergency release: In case of emergency, rotate the emergency valve 90 degree to release the air pressure. The door panel will drop as soon as air pressure in the cylinder is low. Push the door panel manually to open the door

3) Sensitive edge: In case the passenger or other items are clamped during the vehicle door closing, the door panel will be lifted and actuate the limit switch to reverse the motion to open the door.

Ivy Machinery Main Products:

SG300 & ESG300 slide-glide door system for city bus,

SG400 & ESG400 BRT slide-glide door system for city bus or low floor BRT Vehicles,

BP300 electrical bridge-plate ramp for low floor bus,

ER300 electrical rotary door system for mini-bus,

NR300 pneumatic rotary door system for coach bus,

ESW300 electrical swing door system for school bus,

NOSP300 pneumatic outside sliding plug door system for high end bus,

PF300 platform safety door for BRT bus stations.

Ivy’s main rail products :

EOSP300 electrical outside sliding plug door system for Metros or LRV,

EOSP330 electrical plug door system for low floor trams,

EIS300 electrical inside sliding door for Metros or LRV,

EOS300 electrical outside sliding door for Metros or LRV,

BP200 manual bridge-plate for low floor trams,

PF400 platform door system for rail stations.

Our Service :

1. Sample order acceptable
2. Response in 8 hours.
3. Design free of Charge

4.Focus on aftersales service

Certificate :

Ivy is a foreign investors-owned enterprise for the development and mass production of vehicle & platform automatic door systems. Located in Nanjing Software Zone Jiangpu Technology Park, It is built to supply world-class equipments to the fast growing public transportation industry. It owns the capacity to supply 20,000 sets of automatic door system annually.

Founded in 2004, it has become a main automatic door manufacturer in Asia. Its main customers include Qinghua Tongfang, CSR Puzheng Rail Rolling Stock Co., Volvo Bus, Yutong Bus Co., Ltd, BYD, Neoplan China, Changan Bus, FAI Bus and Coach Co., Ltd, Chengdu Bus Co. and so on. Since 2006, Ivy door systems and other auto and industrial components have been exported to the U.S., Canada, Australia, Germany, Indonesia, Thailand and other countries.

Its main products, win the Best Component Award in 2005, 2007, 2011, 2013,2018 National Bus Competition in China. Ivy gets the ISO 9001-2000 certified in 2006, gets ISO/TS 16949:2002 in 2009, and get ISO14000 and 18000 in 2011. Ivy gains competitive advantage by supplying innovative and reliable products. It owns more than forty patents in the automatic door industry. All Ivy new products have to pass function, durability, and environment tests.

After several years’ researches, Ivy has developed doors for railway platform and railway trains. With its patented key technologies such as two-directional driving mechanism, over-center locking and synchronous mechanism, Ivy has gain more and more recognitions in rail industry. Ivy will contribute itself to the public transportation industry by supplying safe, reliable , energy saving and cost effective products to our customers.
